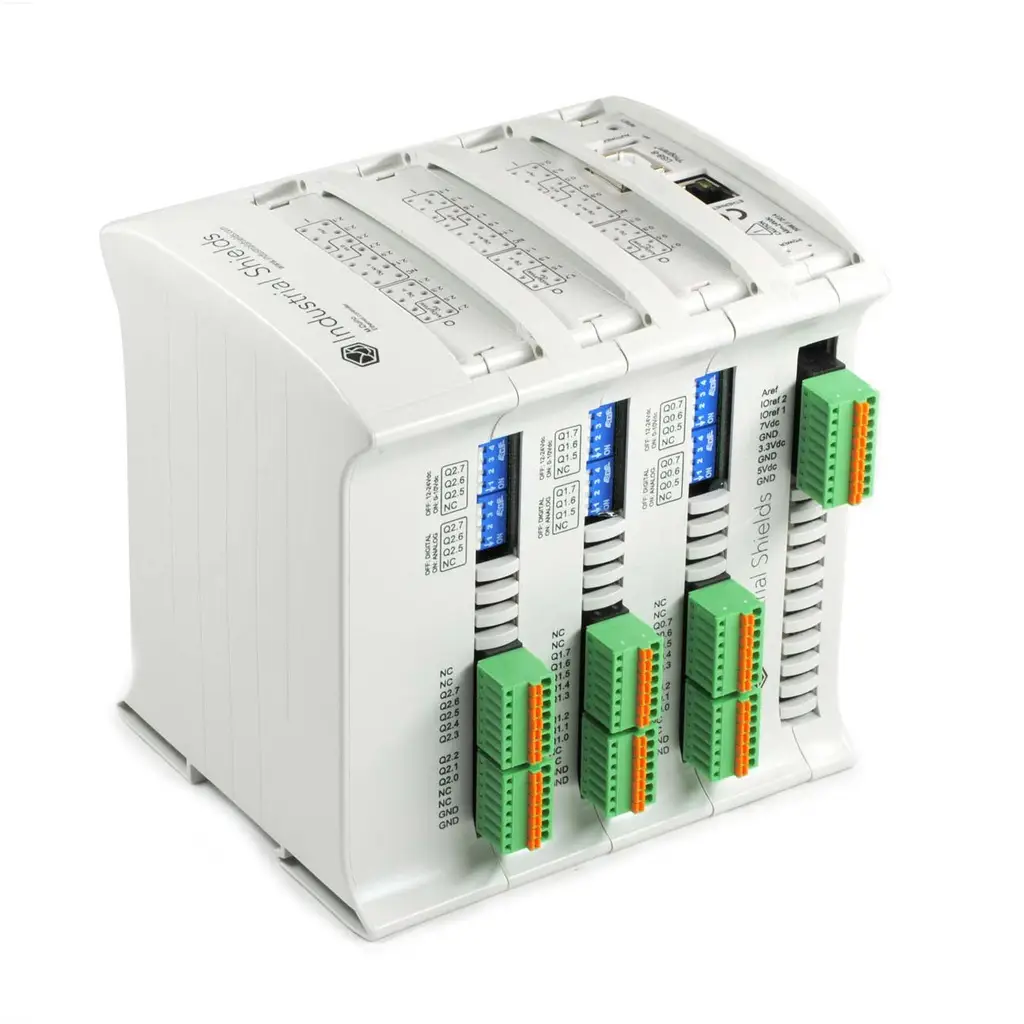

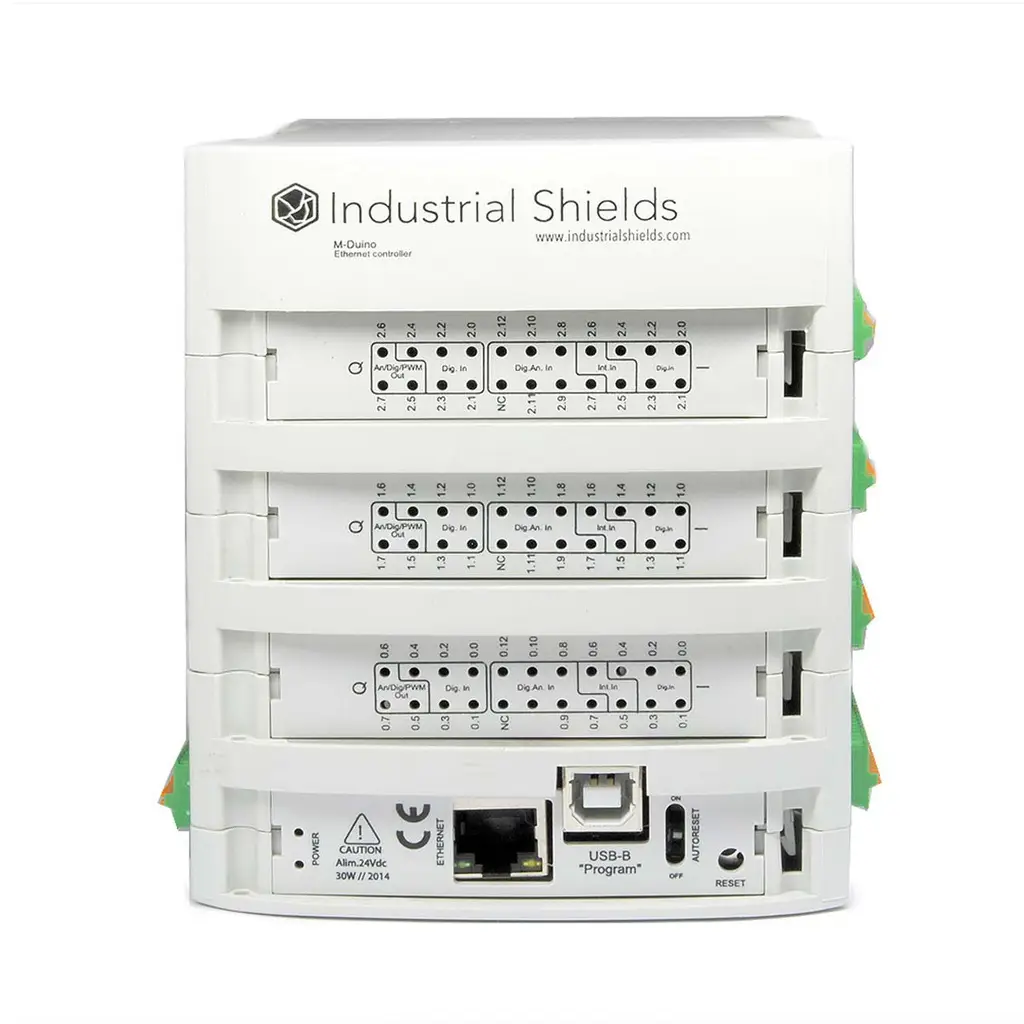

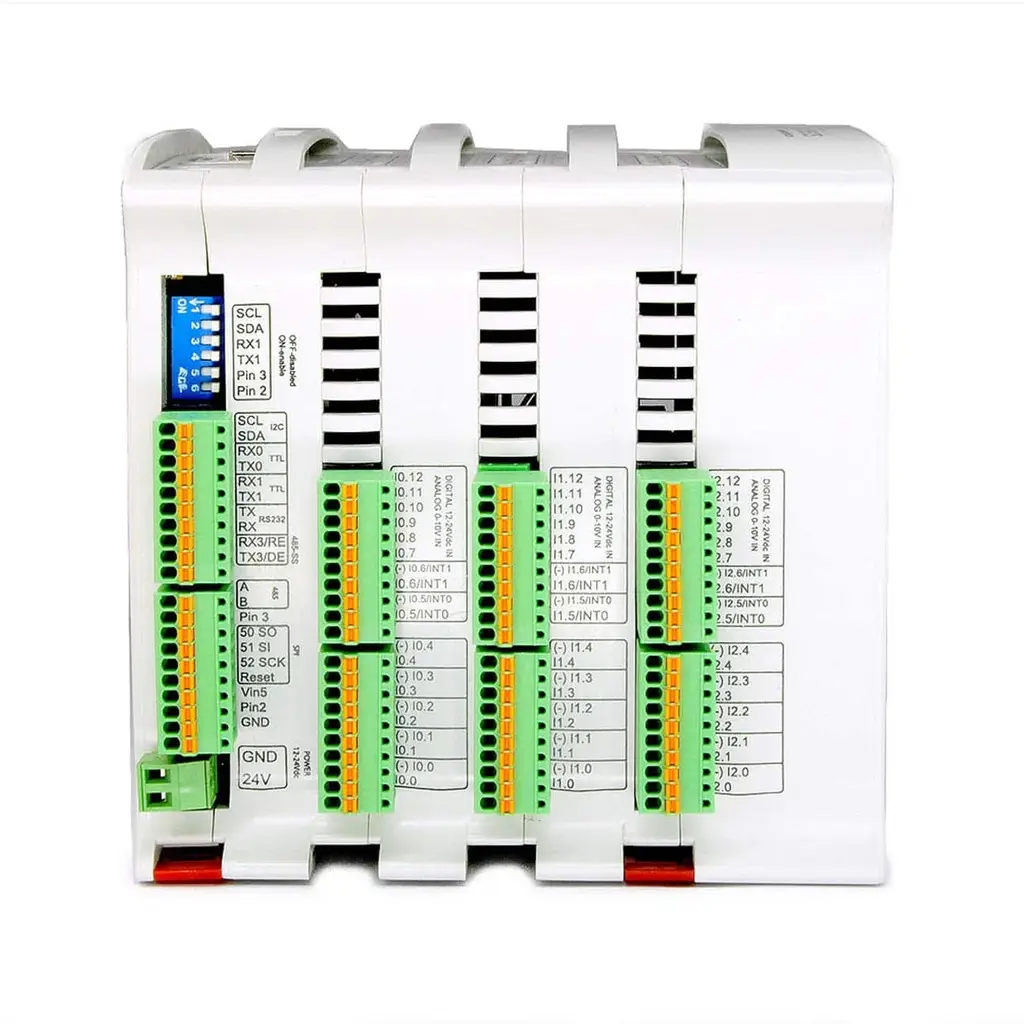

The M-Duino 58+ PLC from Industrial Shields is an Arduino Mega 2560-based programmable logic controller designed for industrial automation systems requiring a higher number of inputs and outputs. With 58 total I/O points, integrated Ethernet connectivity, and multiple serial communication interfaces, this controller supports industrial monitoring, signal processing, and connected equipment control.
Available through AIWTS, the M-Duino 58+ provides flexible I/O connectivity for engineers developing industrial automation applications.
The M-Duino 58+ provides 36 inputs and 22 outputs, supporting applications that require connections to multiple compatible sensors, monitoring devices, and control components.
Its I/O configuration includes:
Analog input channels support 0–10 VDC signals, while analog/digital input channels support digital signals from 0–24 VDC.
This combination of input and output types allows engineers to design systems that handle different industrial signals through one controller.
The M-Duino 58+ PLC incorporates the Arduino Mega 2560 architecture and ATmega2560 microcontroller.
Its processing and memory specifications include:
Industrial Shields provides board packages for configuring supported controllers within the Arduino IDE.
This development environment allows engineers familiar with Arduino-based programming to develop industrial control applications using the M-Duino platform.
The M-Duino 58+ provides multiple interfaces for connecting compatible industrial devices and automation equipment.
Supported communication interfaces include:
These features support network-connected monitoring, equipment communication, and data collection applications.
Compatibility with particular communication protocols and external equipment should be confirmed during system design.
The controller operates on a 12–24 VDC power supply and supports ambient operating temperatures between 0°C and 60°C.
Physical specifications include:
Power consumption was measured at 24 VDC with all outputs active and no external load. This measurement does not represent maximum consumption.
The controller must be installed in an appropriate protective enclosure or electrical cabinet according to the manufacturer’s installation requirements.
AIWTS offers the M-Duino 58+ PLC for $378.00, including delivery within the United States.
Ordering benefits include:
Download the official M-Duino Family Datasheet for complete technical specifications, electrical characteristics, connection diagrams, and installation guidance.
